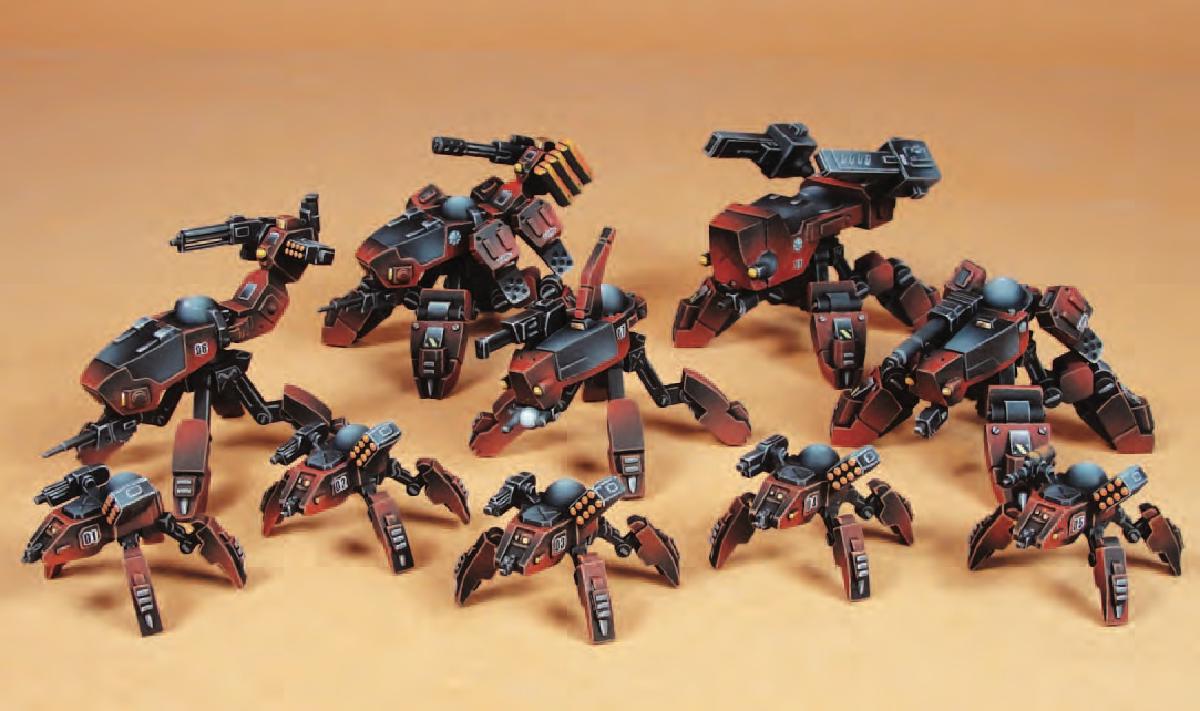

Caprice Army Box (DP9-9343) Plastic Miniatures All Painted.
Caprice Army Box (DP9-9343) Plastic Miniatures All Painted.

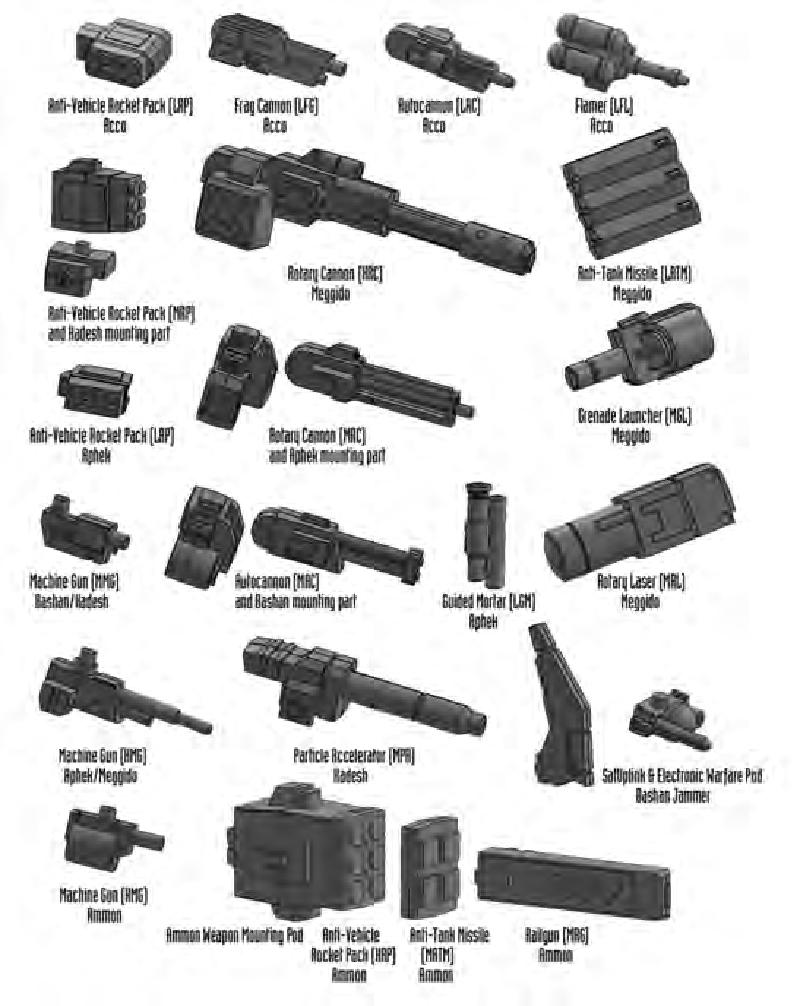

Caprice Weapons and Special Parts Identification Cobra with Weapon Codes
Caprice Weapons and Special Parts Identification Cobra with Weapon Codes

Caprice Army Options
#

The Caprice Army Box makes 2 combat groups, one with a primary unit of 5 small Acco Mounts and support unit with one of the larger mounts if selected. Plus a second combat group with primary unit of larger mounts and support unit if selected. You could also make 3 Combat Groups if you use two Ammon Mounts with 2 actions each as primary units and the 5 Accos as your 3rd Combat Group.

No Bases are included with the Caprice Mounts as they all have 4 legs and are very stable on the gaming tabletop battlefield.

Extra Legs
#

Resin legs are available from the Dream Pod 9 Online Store to allow extra Mount bodies to be used, These can also provide additional modeling options.

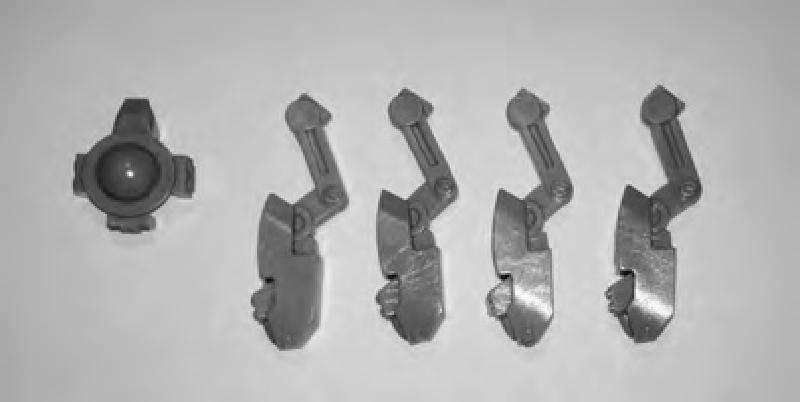

Caprice Resin Legs
Caprice Resin Legs

All purchase links have been moved to the end of this page for convenience as many builds require components from two or more sprues.

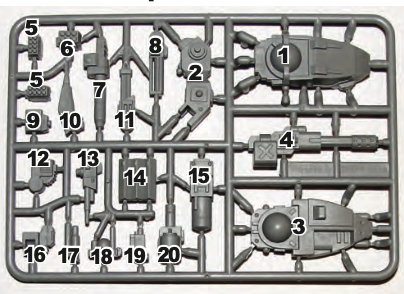

Mount A Parts Sprue
#

Mount A Parts Sprue Parts Sprue [Body And Weapons For Bashan, Aphek, Kadesh, & Meggido]

  1. Aphek / Meggido Body
  2. Aphek / Meggido Tail
  3. Bashan / Kadesh Body
  4. HRC; Meggido
  5. LRP; Aphek (x2)
  6. MRP; Kadesh/Meggido
  7. MPA; Kadesh
  8. MRC; Aphek / Kadesh
  9. Kadesh Weapons Mount for MRP
  10. Sat Uplink; Jammer Bashan
  11. MAC; Bashan
  12. Bashan/Kadesh Weapons Mount for MAC/MRC
  13. HMG; Aphek/Meggido
  14. LATM; Aphek/Meggido
  15. MLC; Meggido
  16. Aphek Tail Weapons Mount for MRC
  17. LGM; Aphek
  18. ECM/ECCM Pod; Jammer Bashan
  19. MMG; Bashan/Kade

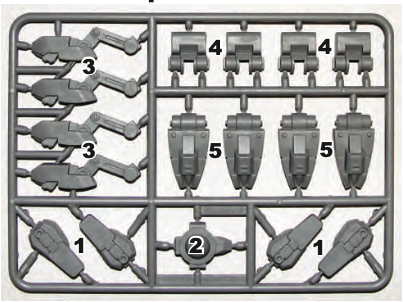

Mount B Parts Sprue
#

Mount B Parts Sprue [Legs & Hip For Bashan, Aphek, Kadesh, Meggido, & Ammon]

  1. Jump Jets (x4); Kadesh/Meggido
  2. Hip; All Mounts
  3. Legs (x4); All Mounts
  4. Lower Leg Upgrade Armor (x4)
  5. Middle Leg Upgrade Armor (x4); Kadesh/Meggido/Ammon

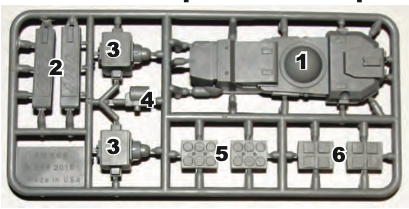

Ammon Mount Parts Sprue
#

  1. Ammon Body
  2. MRG (x2)
  3. Weapons Pod Mounting Part (x2)
  4. HMG
  5. HRP (x2)
  6. MATM (x2)

Acco Mount Parts Sprue
#

  1. Legs (x4)
  2. LRP
  3. LFL
  4. LAC
  5. LFC
  6. Body

Pinning Or Magnets To Connect Hips And Legs To Various Mount Bodies
#

The 5 Mount A sprues allow you to make upto 5 Bashan/Kadesh bodies with weapons and 5 Aphek/Meggido bodies with weapons. The 5 Mount B sprues have the 4 legs and hips used by all the larger mounts plus the jumpjets for the Kadesh/Meggido models. Here is how we suggest you assemble the 5 legs sets to get the most out of your Caprice Army Box. Glue the 4 small legs to the hips part this makes the smaller legs used by the Bashan/Aphek models, then drill a small hole into the ball on top of the hip and glue a short metal pin in it (we used a bit of a paper clip in the photo below). Then drill the same size hole as the pin added to the hips into the underside ball sockets where the hips attach for all the bodies, this way you can hotswap the bodies on and off the 5 small leg sets. You can also use magnets to do the same thing by drilling larger holes and gluing small magnets inside them. For the larger version of the legs we suggest that you not glue the overlay parts to the smaller legs, unless you have purchased more than one Caprice Army Box. Instead we suggest you dry fit the large leg overlay parts over the lower and middle small leg segments and just use a small amount of blue tac between the parts to hold them in place (blue or white tac is stuff used to hold posters on walls). This way you can make all the larger Caprice Mounts and try all the possible Force options.

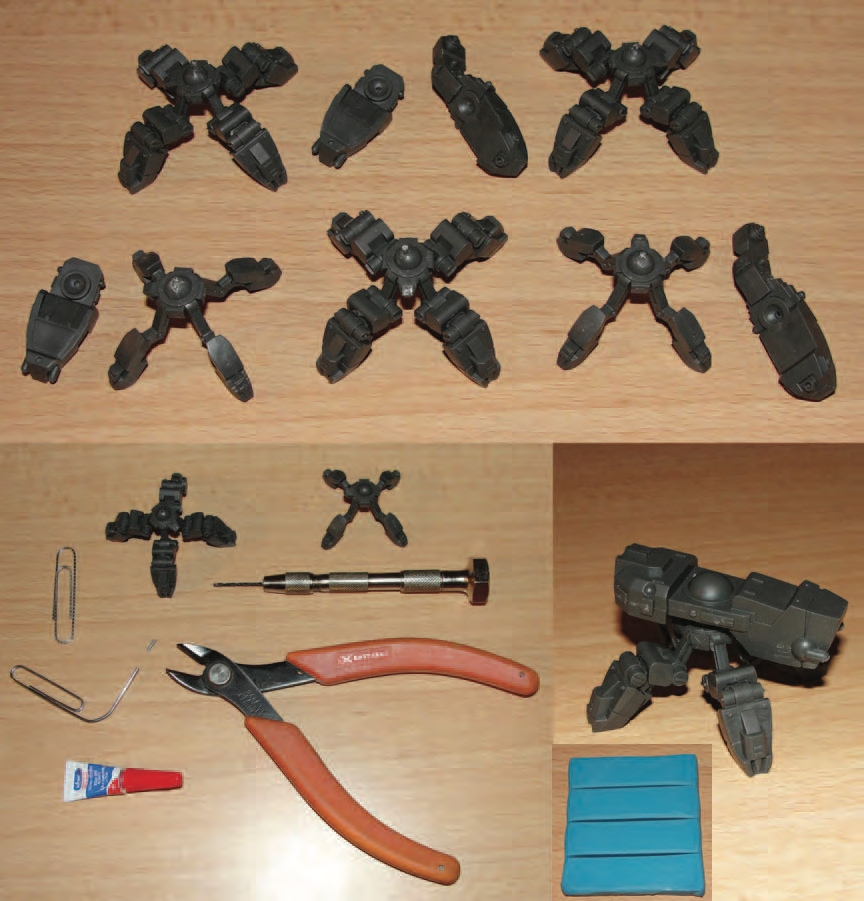

Caprice Assembly Suggestions
Caprice Assembly Suggestions

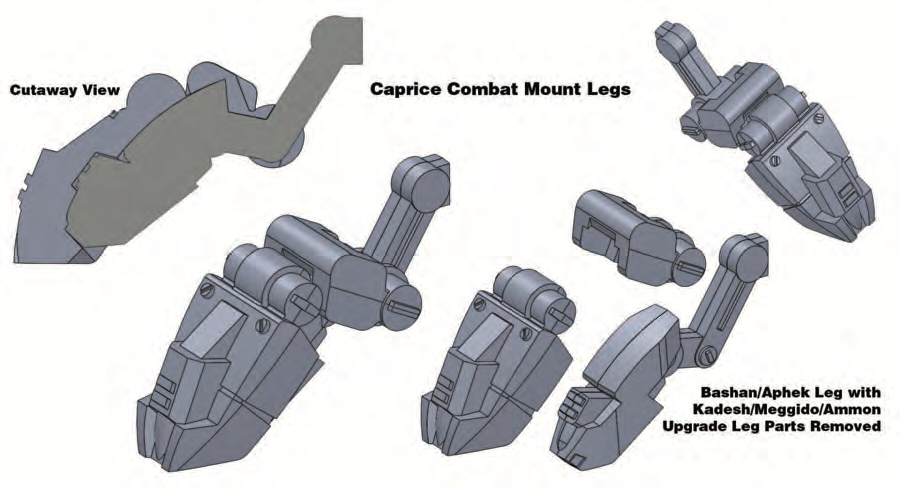

Caprice Mount Leg Assembly
Caprice Mount Leg Assembly

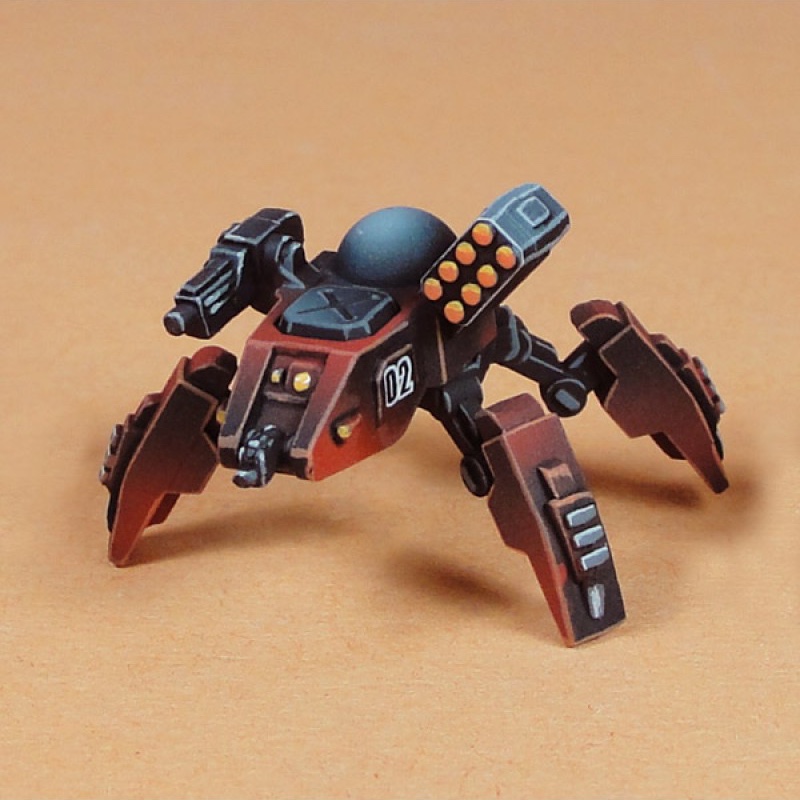

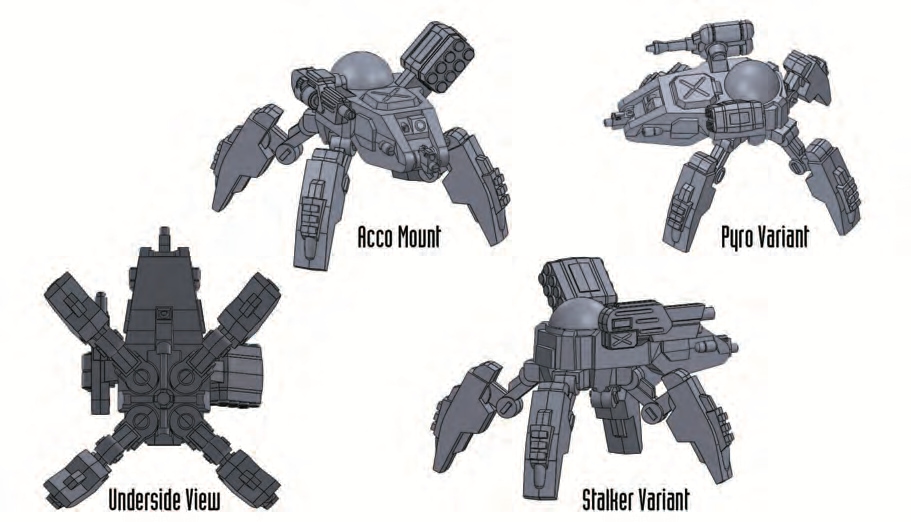

Acco Variants
Acco Variants

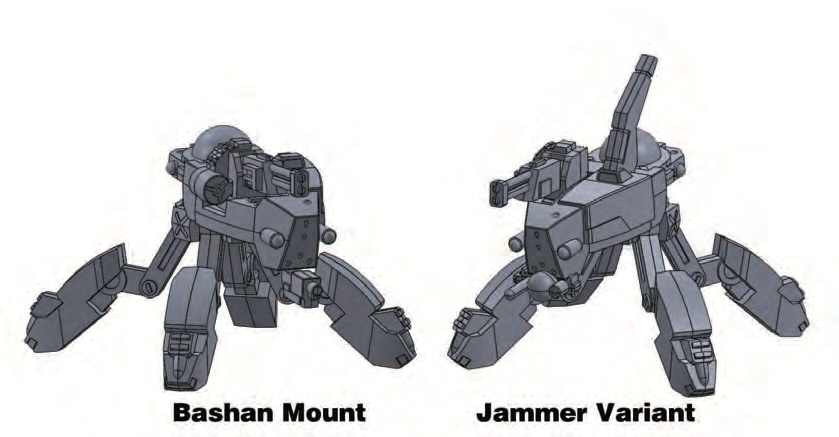

Bashan Variants
Bashan Variants

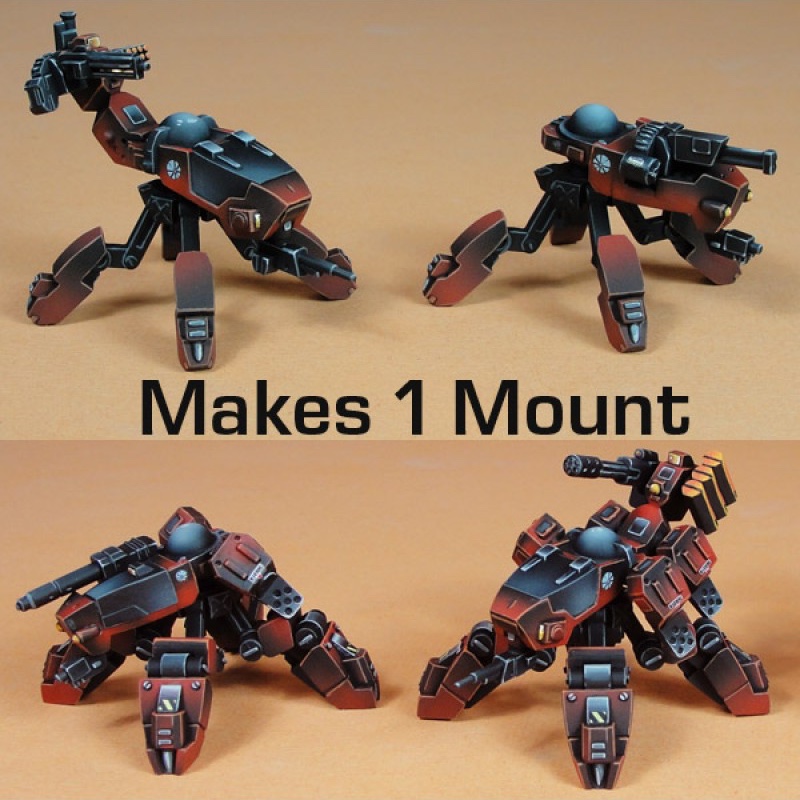

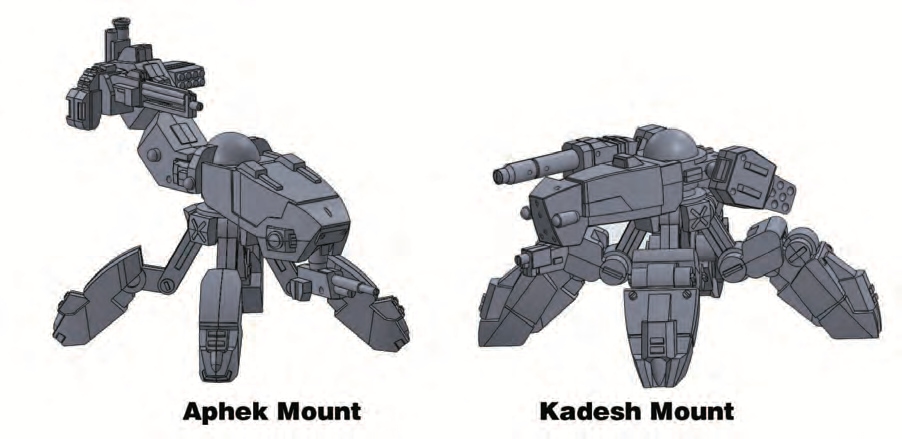

Aphek and Kadesh Mounts
Aphek and Kadesh Mounts

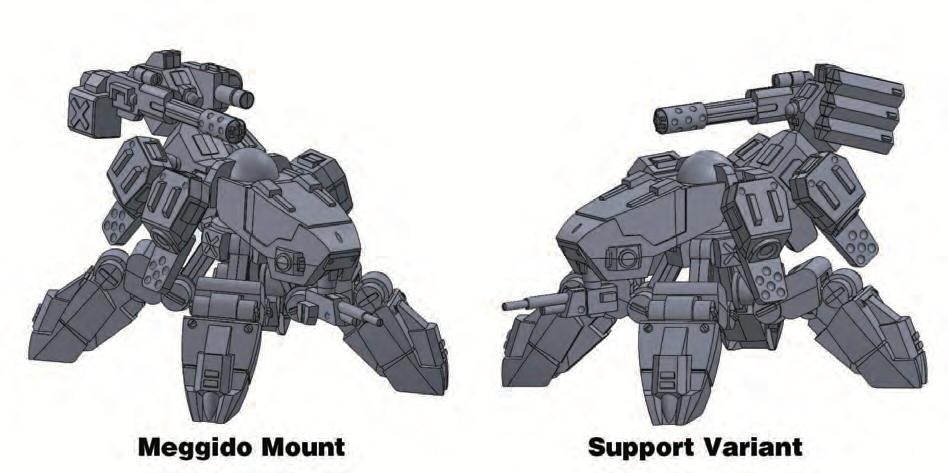

Meggido Variants
Meggido Variants

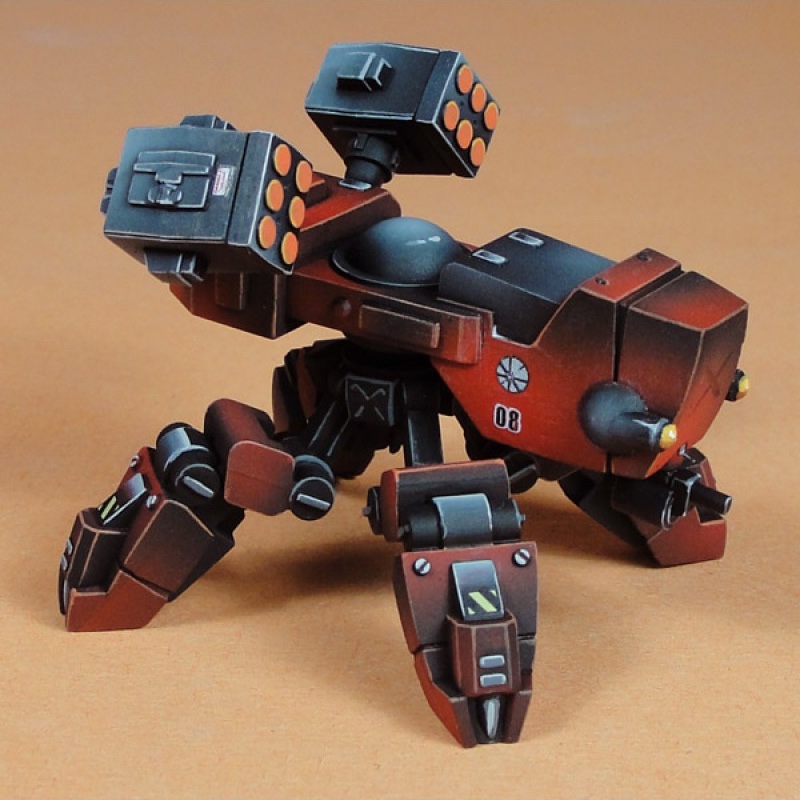

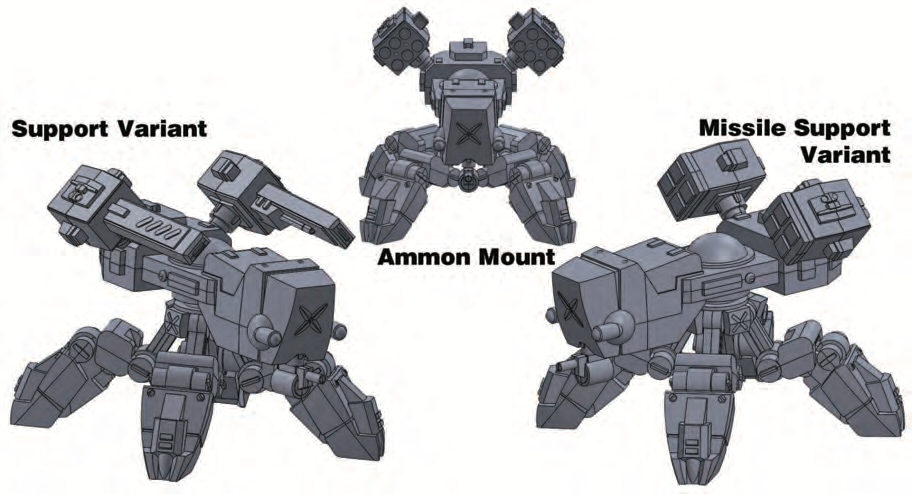

Ammon Variants
Ammon Variants

Purchase Links#

Individual sprues and resin legs are available. The legs can be used to allow extra bodies from the plastics to be used.
